Description
If you are looking for a CASE CX290B Crawler Excavator service repair manual. ServiceManualBase.com provides digital CASE CX290B Crawler Excavator Service Repair Manual.

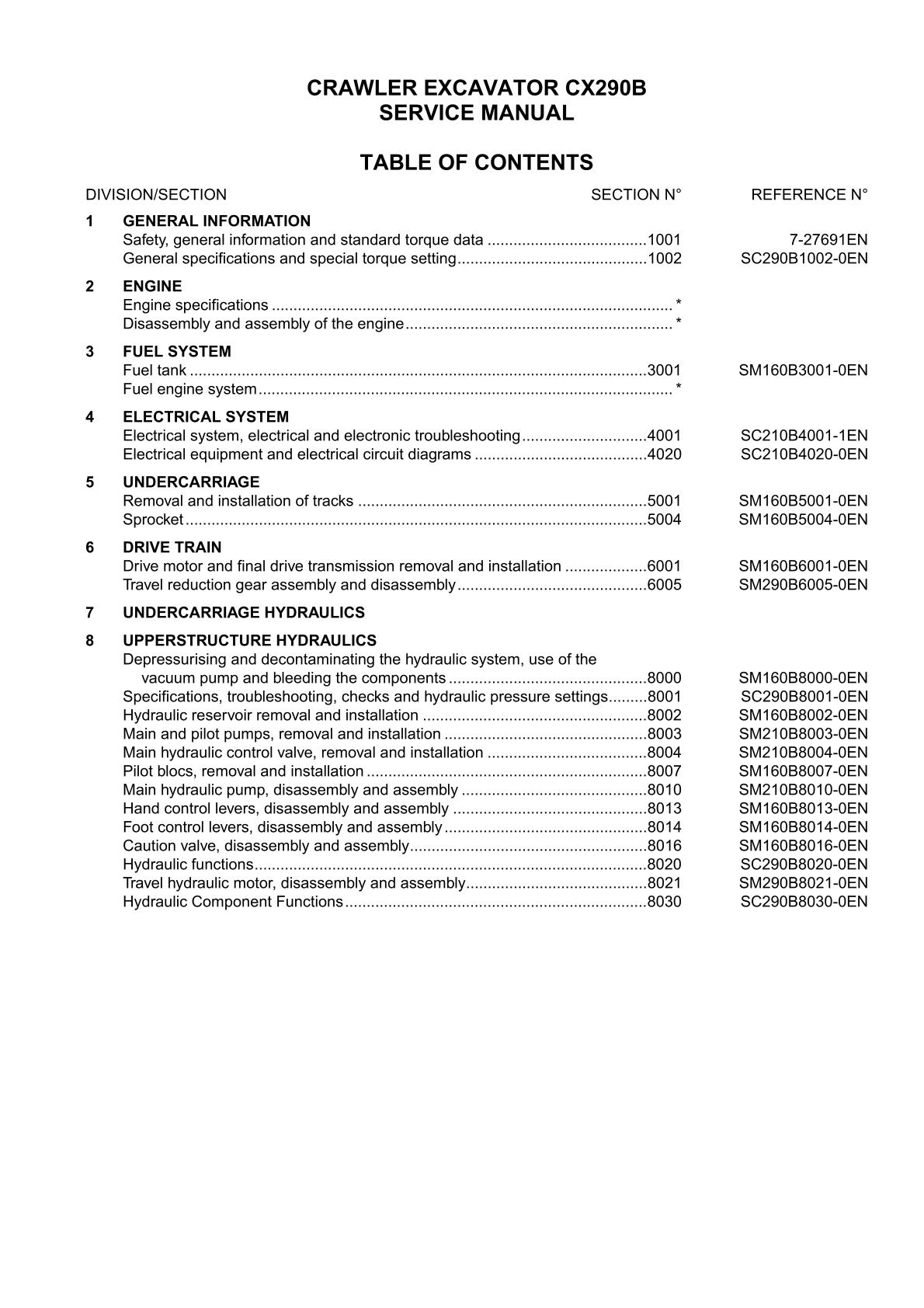

Include information:
1 GENERAL INFORMATION
Safety, general information and standard torque data
General specifications and special torque setting
2 ENGINE
Engine specifications
Disassembly and assembly of the engine
3 FUEL SYSTEM
Fuel tank
Fuel engine system
4 ELECTRICAL SYSTEM
Electrical system, electrical and electronic troubleshooting
Electrical equipment and electrical circuit diagrams
5 UNDERCARRIAGE

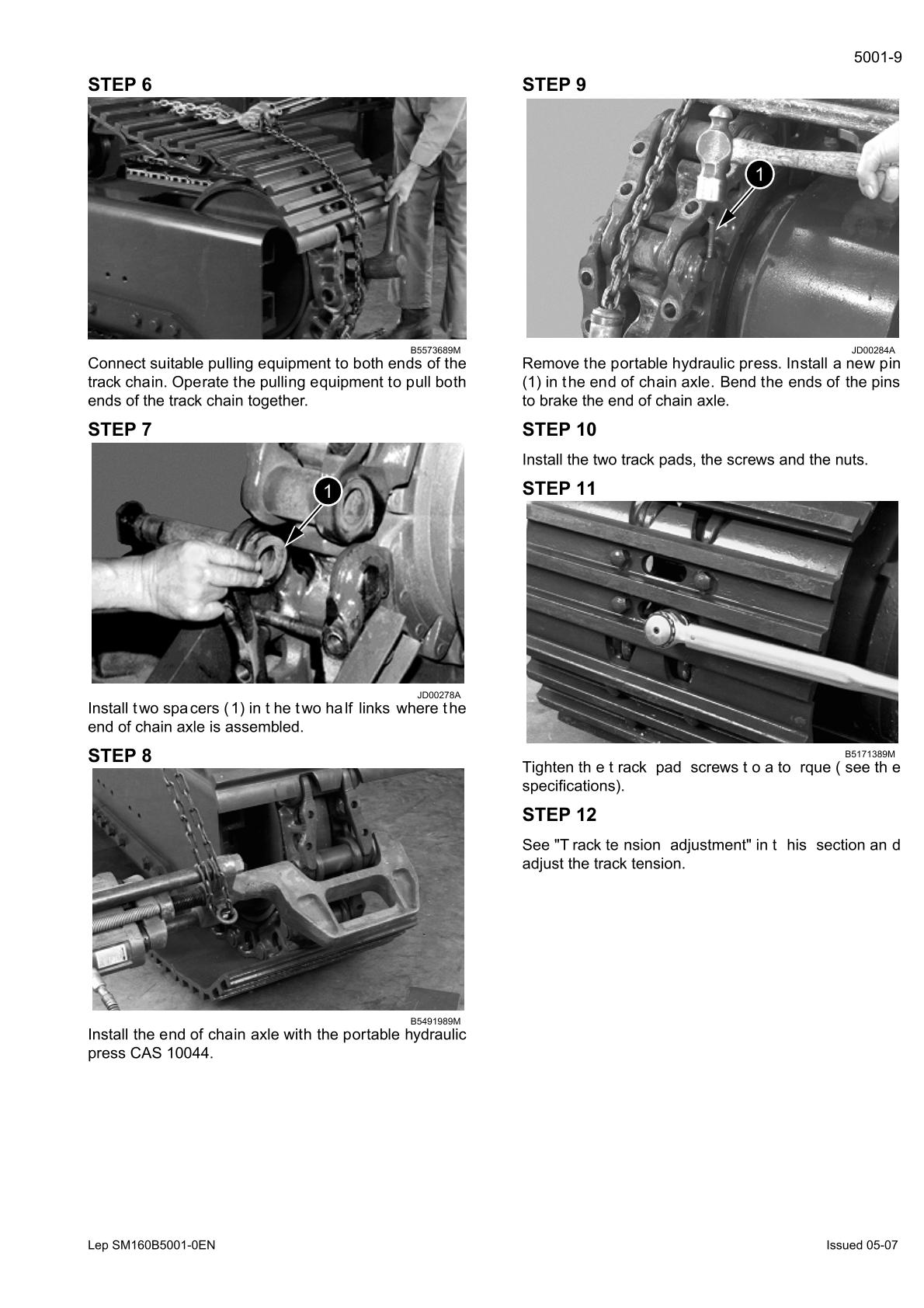

Removal and installation of tracks
Sprocket
6 DRIVE TRAIN
Drive motor and final drive transmission removal and installation

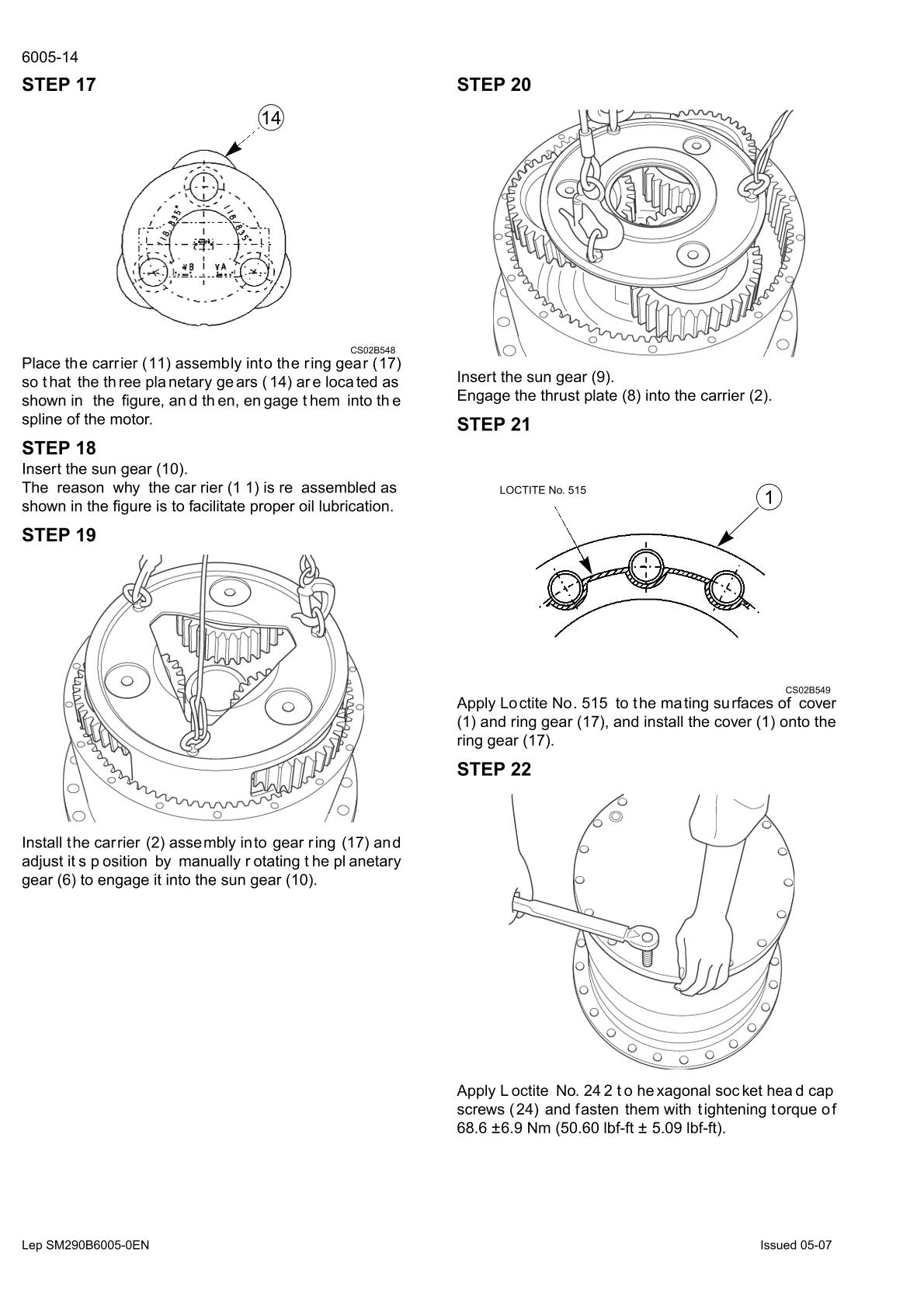

Travel reduction gear assembly and disassembly
7 UNDERCARRIAGE HYDRAULICS
8 UPPERSTRUCTURE HYDRAULICS
Depressurising and decontaminating the hydraulic system, use of the vacuum pump and bleeding the components
Specifications, troubleshooting, checks and hydraulic pressure settings
Hydraulic reservoir removal and installationSM160B8002-0EN
Main and pilot pumps, removal and installation
Main hydraulic control valve, removal and installation
Pilot blocs, removal and installation

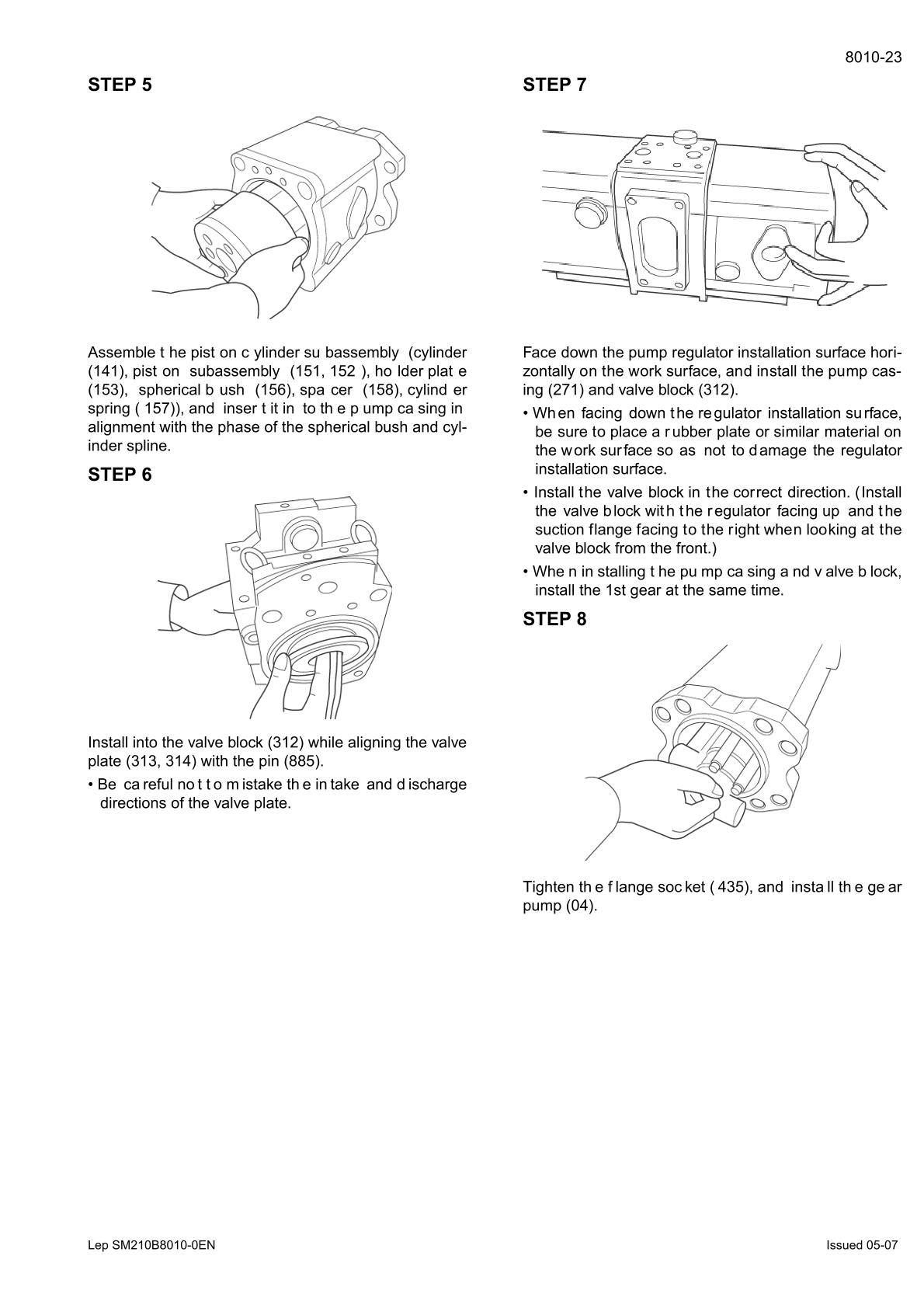

Main hydraulic pump, disassembly and assembly
Hand control levers, disassembly and assembly
Foot control levers, disassembly and assembly
Caution valve, disassembly and assembly
Hydraulic functions
Travel hydraulic motor, disassembly and assembly
Hydraulic Component Functions
A 10-page PDF preview is provided below so you can review the actual content, format, and layout of the manual before purchasing.
What you see is what you get. The preview shows actual pages from the manual.
PDF Preview
